200psi Water Glycol Brass Straight Through Coupler

  • 1
  • 2

Brand Name : carterberg

Model Number : CB-11

Certification : IATF16949

Place of Origin : Shanghai, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 5000~20000 pc/month

Delivery Time : 7-20 work days

Packaging Details : carton

Standard : IATF16949

Material : Brass

Usage : For hot water

Pressure : 200psi

Type : fittings

Color : Yellow

Connection : Hose

Temperature : -20~100°C

Contact Now

Used with water-glycol, hot water and hot oil straight-through non-valved for maximum flow Brass couplings

Features

  1. Non-valved straight-through models for maximum flow
  2. Valved sockets for automatic shut off when line is disconnected
  3. Sockets with straight, 90° and 45° hose stems and without hose stem
  4. Brass plugs with male pipe thread for recessed mounting to avoid damage to plugs when molds are being changed or stored
  5. Compatible with Flo-Temp Series.

CB-11-B Series couplings provide the flow needed to cool or heat injection molds and die casting dies. Sockets are available non-valved for maximum flow, and valved to prevent fluid loss when disconnected. Flo-Temp couplings can be used with water-glycol, hot water and hot oil. Body sizes are 1/4", 3/8" and 1/2".

200psi Water Glycol Brass Straight Through Coupler

Body Size PARTNO. Hose A B C
1/4" CB-S2B-11H-C 1/4" 1.20 0.67 2.25
3/8" CB-S3B-11H-C 3/8" 1.60 0.91 2.68
1/2" CB-S4B-11H-C 1/2" 2.25 1.18 3.42

200psi Water Glycol Brass Straight Through Coupler

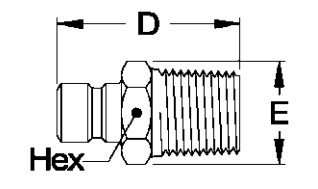

Body Size PARTNO. Thread D E Hex
1/4" CB-P2B-11MN-C 1/8-27 0.94 0.49 0.44
3/8" CB-P3B-11MN-C 1/4-18 1.40 0.63 0.56
1/2" CB-P4B-11MN-C 1/2-14 1.75 0.98 0.88


Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
