CB-SP-10F-TG Hydraulic Quick Coupling | ISO 7241-A Steel Series with Valve Plug
The CB-SP-10F-TG is a carbon steel hydraulic quick coupling engineered for robust industrial demands. Designed in accordance with the ISO 7241-A standard, this model integrates a valve-type plug, offering secure, leak-free connections in high-pressure and high-flow hydraulic systems.
Unlike standard couplings, the CB-SP-10F-TG combines hardened critical components with a reliable poppet valve system to ensure efficient flow control and minimized fluid loss. It is an ideal solution for users who need durability without the cost premium of stainless steel.
Key Features & Benefits
• Valve-Incorporated Plug Design
Ensures automatic shut-off during disconnection, reducing fluid spillage and contamination.
• Ball-Locking Mechanism
Maintains a tight, vibration-resistant connection under demanding conditions.
• Hardened Components
Increased wear resistance for extended service life, even in high-cycle environments.
• Precision Machining
Machined from solid carbon steel stock with reliable dimensional tolerance and sealing accuracy.
• ISO 7241-A Compatibility
Fully interchangeable with Parker 6600 Series, Faster ANV Series, Aeroquip 5600 Series, and Hansen HA 15000 Series.
Technical Specifications
| Body Size (inch) | 3/4" | 1" |
| Rated Pressure (PSI) | 3000 | 3000 |
| Rated Flow (GPM) | 28 | 50 |
| Temperature Range | -20°C to +120°C |
|
| Seal Material (Standard) | NBR |
|
| Material | Carbon Steel (Chrome-plated) |
|
Performance Curve:
Pressure drop performance available upon request. Standard test based on oil ISO 200SUS at 38°C.
Dimensional Overview
Female (Socket)
| PARTNO. | LS | Φ D | HS | A | T |
| CB-S6S-TG | 85 | 49 | S38 | 19 | G3/4 NPT3/4 |
| CB-S8S-TG | 98.5 | 57 | S44.5 | 23 | G1 NPT1 |

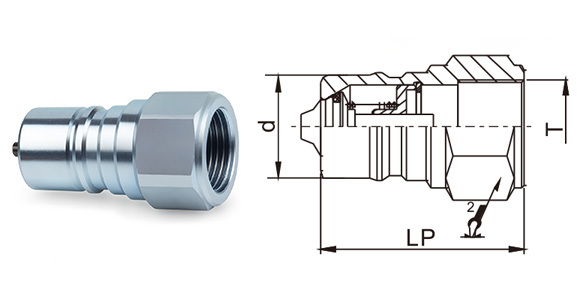

Male (Plug)
| PARTNO. | LP | d | C | HP | A | T |
| CB-P6S-TG | 57 | 29 | 29 | S35 | 19 | G3/4 NPT3/4 |
| CB-P8S-TG | 65 | 34.3 | 34.3 | S41 | 23 | G1 NPT1 |
Applications
The CB-SP-10F-TG is suitable for a wide range of industrial sectors, including:
• Construction Equipment – Excavators, loaders, rock breakers
• Forestry Machinery – Tree harvesters, mulchers
• Agricultural Systems – Hydraulic implements, sprayers
• Industrial Tools – Presses, injection molding machines
• General Hydraulic Circuits – Fluid transfer in mid-pressure mobile and stationary systems
Why Choose CB-SP-10F-TG
• Offers reliable connection with integrated shut-off for fluid control
• Excellent performance-to-cost ratio compared to stainless steel models
• Maintains full interchangeability within ISO 7241-A ecosystem
• Operates confidently in medium-duty to heavy-duty environments
FAQs
Q: Is CB-SP-10F-TG suitable for corrosive environments?
A: While carbon steel provides excellent mechanical strength, it is not suitable for high-corrosion environments. For such use cases, we recommend stainless steel models like CB-SPL-10F.
Q: Can CB-SP-10F-TG be used with existing ISO 7241-A connectors?
A: Yes. The coupling is fully interchangeable with other ISO 7241-A standard parts.
Q: What's the main advantage of choosing carbon steel over stainless steel?
A: Cost-efficiency and structural toughness for general applications that don’t require corrosion resistance.
Call to Action
Need a reliable hydraulic quick coupling without breaking the bank?
Request a quote for CB-SP-10F-TG today or contact us to discuss your system needs.
